ΤΗΛΕΣΚΟΠΙΚΗ ΣΥΡΟΜΕΝΗ ΜΕΤΑΛΛΙΚΗ ΠΥΡΑΝΤΟΧΗ ΠΟΡΤΑ, ΜΕ ΔΕΙΚΤΗ ΠΥΡΑΝΤΙΣΤΑΣΗΣ 60' & 120', REI 60 & REI 120, ΣΥΜΦΩΝΑ ΜΕ UNI 9723, ΤΟΥ ΟΙΚΟΥ MEVERIN S.r.l. ΙΤΑΛΙΑΣ.

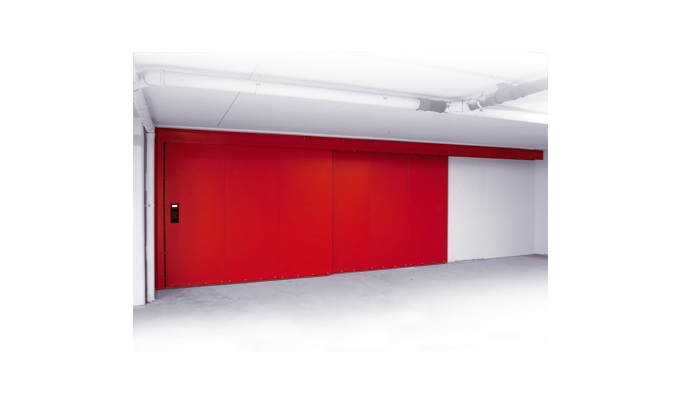

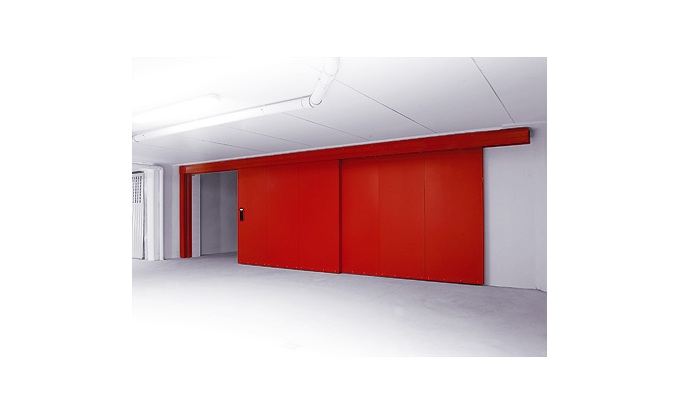

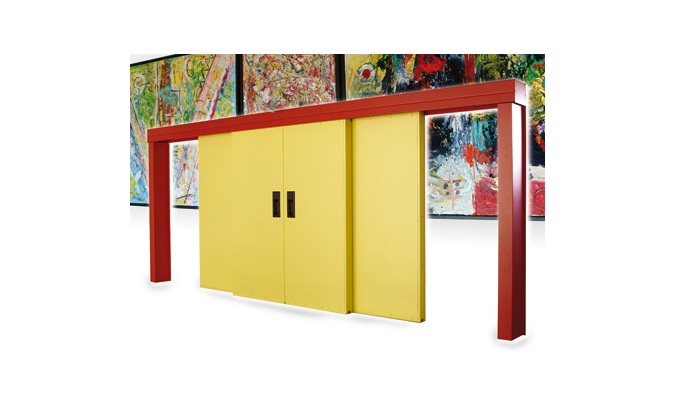

REI Telescopic sliding doorsUNIDIRECTIONAL (T2) or BIDIRECTIONAL (T4) telescopic modular sliding doors.
Telescopic modular sliding doors can be installed on reinforced concrete frames or on request on insulated metallic frames, both manufactured and supplied by MEVERIN.
Telescopic doors provide protection for extremely wide compartments while featuring narrow working width
Technical features:
Uni-or bidirectional horizontal sliding guide, in-built reset-fire device, made in press-formed plate section bar and fit for fixing through brackets or direct fixing to the ceiling through suitable compensating devices. Overhead sliding on low friction carriages. Sliding rollers positioned on the floor out of sight.
Leafs made by independent panels with coplanar male/female joints. Programmed deformability plate on both external faces. Assembly by means of screws. Steel plate as superior and inferior stiffening structure. High temperature resistant MEV FIRUX® non conductive internal insulation.
FIRUX® intumescent seals on every labyrinth and under the panel.
Recessed handle on both sides of every leaf.
Counterbalanced system for safe and smooth closing.
