ΣΥΡΟΜΕΝΕΣ

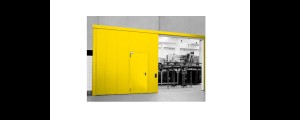

ΣΥΡΟΜΕΝΗ ΜΕΤΑΛΛΙΚΗ ΠΥΡΑΝΤΟΧΗ ΠΟΡΤΑ, ΜΕ ΔΕΙΚΤΗ ΠΥΡΑΝΤΙΣΤΑΣΗΣ 60', 120' & 180' ΛΕΠΤΩΝ, REI 60, REI 120 & REI 180, ΣΥΜΦΩΝΑ ΜΕ UNI 9723, ΤΟΥ ΟΙΚΟΥ MEVERIN S.r.l. ΙΤΑΛΙΑΣ.

REI 120 FIRE FIXING® version: single-or two-leaf modular sliding door, pedestrian door available, installation possible on both reinforced concrete frames or on insulated metallic frames.

REI 180 FIRE FIXING® version: single-leaf modular sliding door.

Tecnical characteristics:

Horizontal sliding guide, made in press-formed plate section bar, perforated for fixation to the support by means of dowels on the outer edges. Overhead sliding on low friction carriages. Sliding rollers positioned on the floor out of sight.

Leaves made by independent panels with coplanar male/female joints. Programmed deformability plate on both external faces. Assembly by means of screws. Steel plate as superior and inferior stiffening structure. High temperature resistant MEV FIRUX® non conductive internal insulation.

Pedestrian door (optional and in REI 120 FIRE FIXING® version only).
FIRUX® intumescent seals on every labyrinth and under the panel.
Recessed handle on both sides of every leaf.
Counterbalanced system for safe and smooth closing.

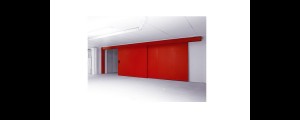

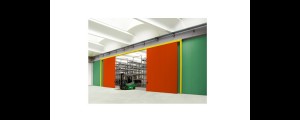

ΤΗΛΕΣΚΟΠΙΚΗ ΣΥΡΟΜΕΝΗ ΜΕΤΑΛΛΙΚΗ ΠΥΡΑΝΤΟΧΗ ΠΟΡΤΑ, ΜΕ ΔΕΙΚΤΗ ΠΥΡΑΝΤΙΣΤΑΣΗΣ 60' & 120', REI 60 & REI 120, ΣΥΜΦΩΝΑ ΜΕ UNI 9723, ΤΟΥ ΟΙΚΟΥ MEVERIN S.r.l. ΙΤΑΛΙΑΣ.

REI Telescopic sliding doorsUNIDIRECTIONAL (T2) or BIDIRECTIONAL (T4) telescopic modular sliding doors.

Telescopic modular sliding doors can be installed on reinforced concrete frames or on request on insulated metallic frames, both manufactured and supplied by MEVERIN.

Telescopic doors provide protection for extremely wide compartments while featuring narrow working width

Technical features:

Uni-or bidirectional horizontal sliding guide, in-built reset-fire device, made in press-formed plate section bar and fit for fixing through brackets or direct fixing to the ceiling through suitable compensating devices. Overhead sliding on low friction carriages. Sliding rollers positioned on the floor out of sight.

Leafs made by independent panels with coplanar male/female joints. Programmed deformability plate on both external faces. Assembly by means of screws. Steel plate as superior and inferior stiffening structure. High temperature resistant MEV FIRUX® non conductive internal insulation.

FIRUX® intumescent seals on every labyrinth and under the panel.
Recessed handle on both sides of every leaf.
Counterbalanced system for safe and smooth closing.

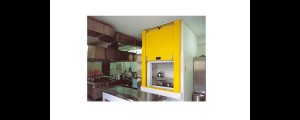

ΚΑΘΕΤΗ ΣΥΡΟΜΕΝΗ ΜΕΤΑΛΛΙΚΗ ΠΥΡΑΝΤΟΧΗ ΠΟΡΤΑ, ΜΕ ΔΕΙΚΤΗ ΠΥΡΑΝΤΙΣΤΑΣΗΣ 120' ΛΕΠΤΩΝ, REI 120, ΣΥΜΦΩΝΑ ΜΕ UNI 9723, ΤΟΥ ΟΙΚΟΥ MEVERIN S.r.l. ΙΤΑΛΙΑΣ.

Modular vertical sliding door.

Technical characteristics:

Fixed labyrinths made in press-formed steel plate. Sliding on lateral guides and antifriction anti-flame guide shoes. Adjustable counter-weights.

Leaves made in programmed deformability steel plate on both external faces. Large sizes are made by coupling modular panels. High temperature resistant MEV FIRUX® non conductive internal insulation.

Intumescent seals on every labyrinth.

Recessed handle on both sides of the lower part of the leaf.

Counterbalanced system for door closing through electromagnets.

SOME COMMON USΕS:

Provide fire compartmentation of technical rooms.
Provide fire compartmentation in canteens and refreshment areas.
Provide fire compartmentation in areas devoted to automatic handling of materials (automatic warehouses and production lines).

ΣΤΑΘΕΡΑ & ΜΕΤΑΚΙΝΟΥΜΕΝΑ ΠΑΝΕΛ, ΠΟΛΛΑΠΛΩΝ ΦΥΛΛΩΝ, ΜΕ ΔΕΙΚΤΗ ΠΥΡΑΝΤΙΣΤΑΣΗΣ 60', 120' & 180' ΛΕΠΤΩΝ, REI 60, REI 120 & REI 180, ΣΥΜΦΩΝΑ ΜΕ UNI 9723, ΤΟΥ ΟΙΚΟΥ MEVERIN S.r.l. ΙΤΑΛΙΑΣ.

FIRE FIXING® modular wall certified in the specific fire-resistance ratings, made by assembling modular panels.

Modular panels are expressly designed to provide internal partitions to fire-risk buildings and environments. Their particular structure offers new horizons for designers and unparallel advantages for environments housing already established activities: installation is simple, quick and without side-effects (formation of dust, scraps or pollutants).

The FIRE FIXING® modular system enables accurate calculation of dimensions of walls providing compartmentation, according to the variety of use requirements in case of different destination of use of the compartments.

Elements of the FIRE FIXING® walls can be removed and reinstalled in other rooms whenever required, thus offering remarkable economic advantage.

Main characteristics of the modular wall:

Fire rated modular panels certified in the specific fire-resistance ratings, expressly designed to provide fire compartmentation in both small and large environments, also those featuring high fire risk.

30- to 180- minute and even more fire protection.
self supporting monolithic structure.
High noise reduction.

MEVERIN modular system offering customized dimensions of partitions, designed for utmost control and splitting of loads.

Very simple and quick installation preventing dust and scraps formation in the environment for which compartmentation has to be provided.

KOMBI FIRUX® system wall to house doors and gates, also fireproof ones.

Modular panels offer different finishes: smooth, striped, wood effect, raised panels and pleated.

Stainless steel production on request for chemical, pharmaceutical, food industries etc..

The modular wall is also available in the SUPPORTING version. The FIRE FIXING® supporting wall has been specifically designed to house SLIDING and/or BRD (MAGNUM) doors.
